轻便型BKSJ-200 水汽两用型水井钻机/BKSJ-200 Water-Air Dual-Purpose Water Well Drilling Rig

百勘BKSJ-200 水汽两用型钻机

200型水汽两用型水井钻机是一款集气动钻进与液压钻进优势于一体的高效钻井设备，专为民用饮水井、农田灌溉井及小型工程降水井施工设计。

该机型最大钻井深度可达200米，适配φ110~φ300mm多种井径需求，核心优势在于双介质钻进模式：采用空气钻进时，可快速应对砂土层、风化岩等松散地层，排渣效率高且不易塌孔；切换清水钻进模式后，能稳定攻克硬度中等的基岩层，满足不同地质条件的钻井作业。

整机结构紧凑、重量轻，除履带式底盘外，可选配轮胎牵引配置，适配轻便钻机的灵活作业需求。轮胎牵引具备多重核心优势：

l 转运效率更高，可直接通过普通拖车或牵引车拖拽，无需专业吊装设备，大幅降低场地转运的时间与成本；

l 道路适应性广，能轻松适配乡村水泥路、田间小道等常规铺装或非铺装路面，弥补履带式底盘在硬质道路行驶时的灵活性不足；

l 维护成本更低，轮胎结构简单，后续保养、更换便捷，相较于履带的复杂养护更省心；

l 对路面损伤小，在村庄、农田周边等对路面保护有要求的区域作业时，可避免履带碾压造成的路面破坏。同时，设备配备智能化操控系统，操作简便易学，大幅降低人工强度；搭载高效节能动力单元，油耗低、噪音小，符合环保作业标准。

本钻机广泛应用于农村饮水安全工程、农业灌溉项目及小型建筑工程降水领域，以高性价比、高可靠性成为中小型钻井队的优选装备。

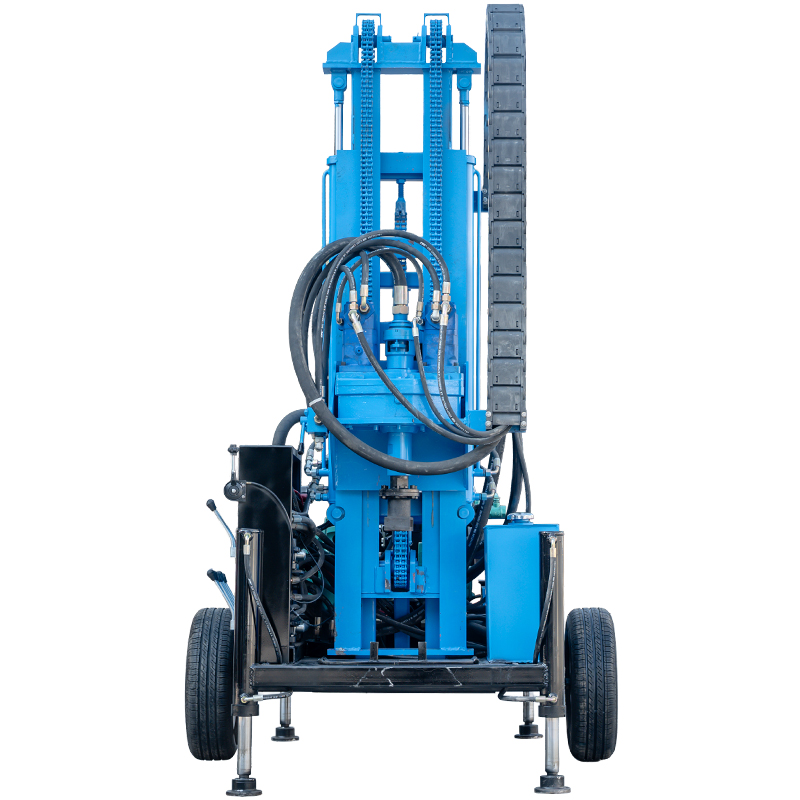

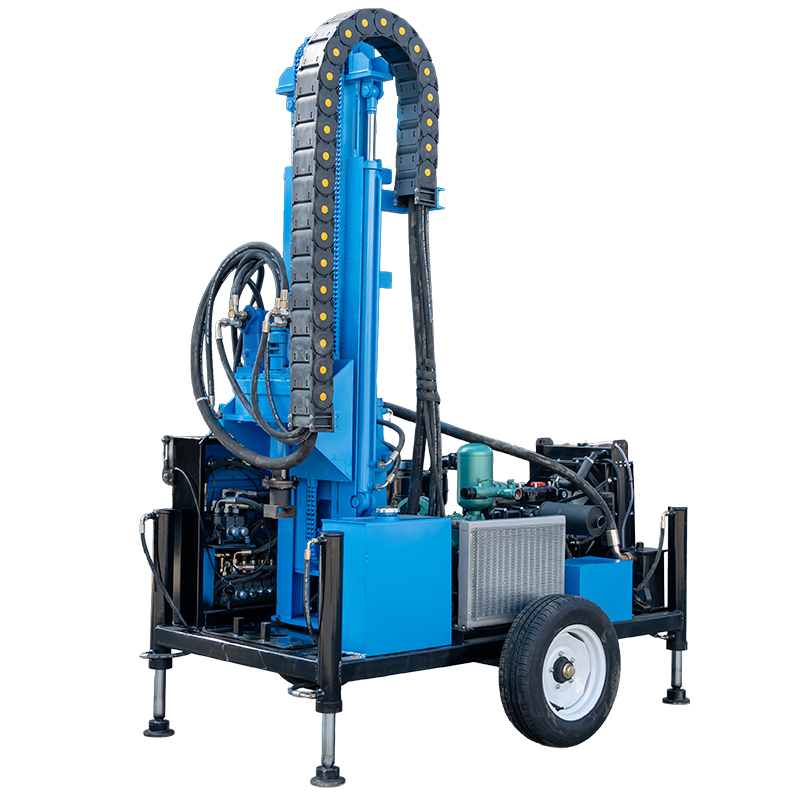

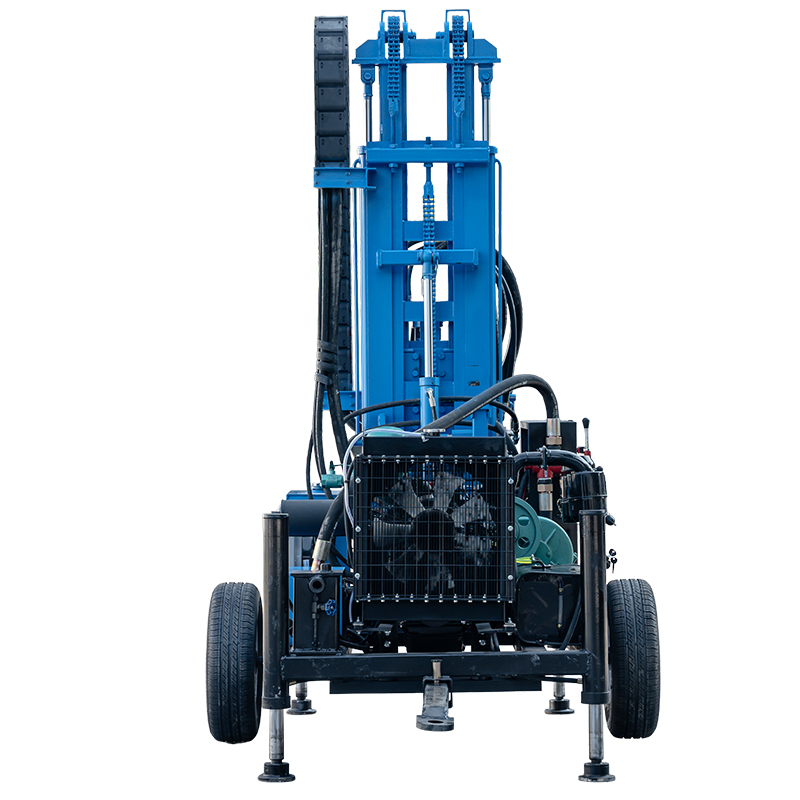

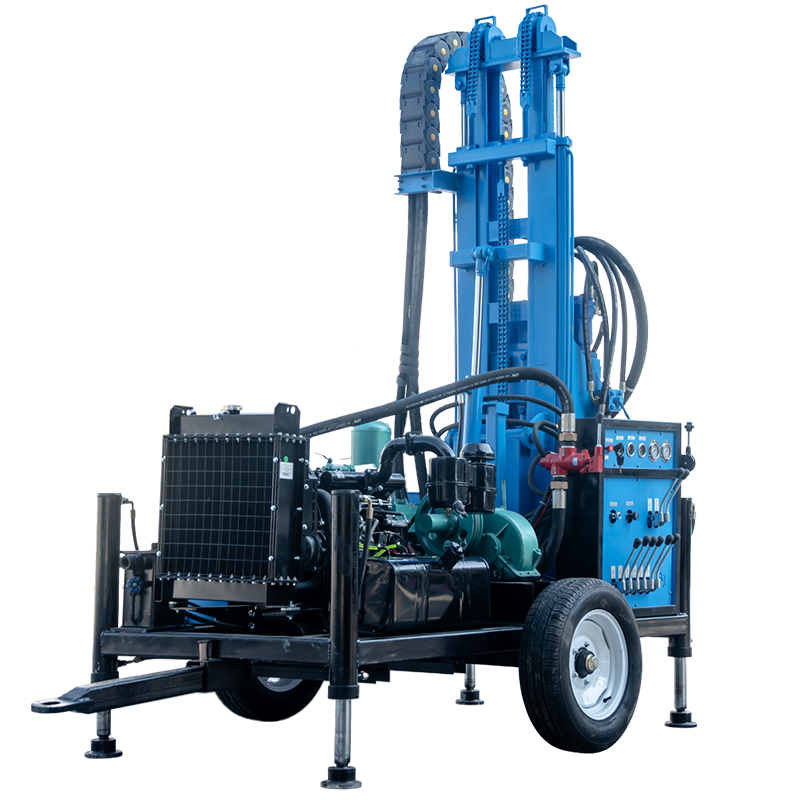

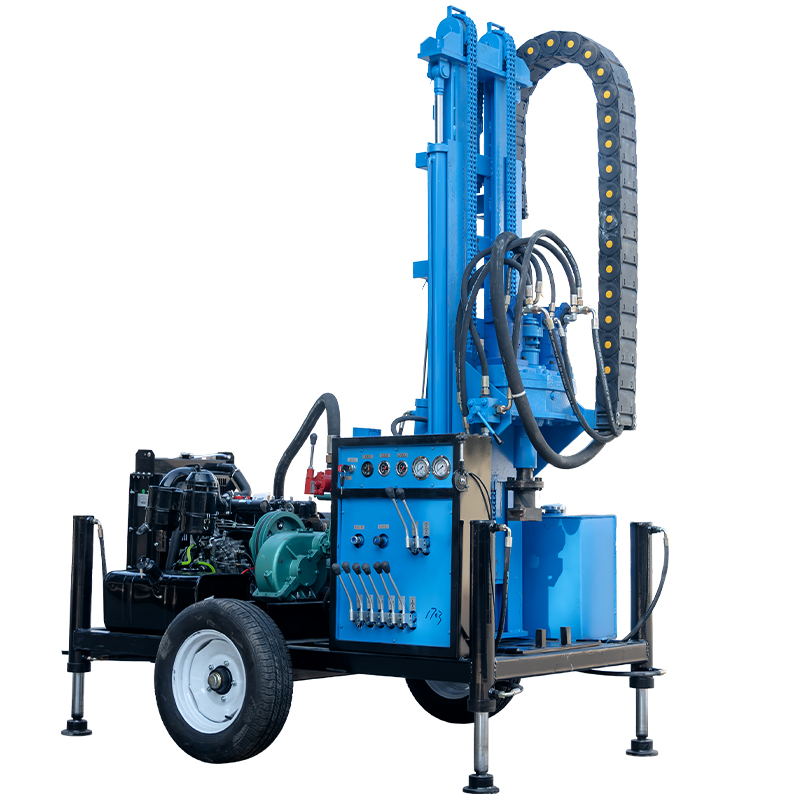

BKSJ-200 Water-Air Dual-Purpose Water Well Drilling Rig

The Model 200 Water-Air Dual-Purpose Water Well Drilling Rig is a high-efficiency drilling equipment integrating the advantages of pneumatic drilling and hydraulic drilling, specially designed for the construction of civil drinking water wells, farmland irrigation wells and small-scale engineering dewatering wells.

With a maximum drilling depth of 200 meters, this model is compatible with a variety of well diameter requirements ranging from φ110mm to φ300mm. Its core advantage lies in the dual-medium drilling mode: when adopting air drilling, it can quickly handle loose formations such as sandy soil layers and weathered rocks, with high slag discharge efficiency and low risk of hole collapse; when switched to clear water drilling mode, it can stably penetrate bedrock formations with medium hardness, meeting the drilling operation needs of different geological conditions.

The whole machine features a compact structure and light weight. In addition to the crawler chassis, it can be optionally equipped with a tire traction configuration, which is suitable for the flexible operation needs of light drilling rigs. Tire traction has multiple core advantages:

l higher transportation efficiency, which can be directly towed by ordinary trailers or tractors without professional hoisting equipment, greatly reducing the time and cost of on-site transportation;

l wide road adaptability, which can easily adapt to conventional paved or unpaved roads such as rural cement roads and field paths, making up for the lack of flexibility of crawler chassis when driving on hard roads;

l lower maintenance costs, the tire structure is simple, subsequent maintenance and replacement are convenient, and it is more worry-free than the complex maintenance of crawlers;

l little damage to the road surface, when operating in areas requiring road surface protection such as villages and farmland, it can avoid road surface damage caused by crawler rolling. Equipped with an intelligent control system, the equipment is simple and easy to operate, greatly reducing labor intensity; meanwhile, it is fitted with a high-efficiency and energy-saving power unit, featuring low fuel consumption and low noise, complying with environmental protection operation standards.

This drilling rig is widely used in rural drinking water safety projects, agricultural irrigation projects and small-scale construction engineering dewatering fields. With its high cost performance and high reliability, it has become the preferred equipment for small and medium-sized drilling teams.
